Semi-automatic bandsaw – Model S-23P

HYDMECH

Inquiry Request

There S-23P is a semi-automatic pivot-type horizontal band saw, designed to provide a excellent miter cutting capacity, ideal for light to medium duty applications. It is equipped with a control panel Intelligent PLC with LED display showing: blade speed, blade voltage, piece counter, head position, cutting time, motor amperage, and more — all available in multiple languages.

With a capacity of 16” x 20” at 90°, A powerful 5.5 HP motor, and a blade of 1 1/4”, the S-23P ensures productivity, robustness and precision, while remaining compact. It allows a pivot of the head of 90° to 60° for fast and accurate angular cuts.

Its hydraulic system on demand and its option of adjustable direct descent for flow and pressure control make it an efficient and energy-efficient machine.

chevron-left
chevron-right

There S-23P is a semi-automatic pivot-type horizontal band saw, designed to provide a excellent miter cutting capacity, ideal for light to medium duty applications. It is equipped with a control panel Intelligent PLC with LED display showing: blade speed, blade voltage, piece counter, head position, cutting time, motor amperage, and more — all available in multiple languages.

With a capacity of 16” x 20” at 90°, A powerful 5.5 HP motor, and a blade of 1 1/4”, the S-23P ensures productivity, robustness and precision, while remaining compact. It allows a pivot of the head of 90° to 60° for fast and accurate angular cuts.

Its hydraulic system on demand and its option of adjustable direct descent for flow and pressure control make it an efficient and energy-efficient machine.

Main features

  • Semi-automatic PLC operator control with LED display

  • Cast iron swivel saw head, robust, up to 60°

  • Direct blade drive (VFD 8.8 HP) – without belts or pulleys

  • Infinitely variable blade speed, displayed on panel

  • Full capacity hydraulic vices with full stroke

  • Adjustable flow hydraulic head descent

  • Mechanical blade tension with digital display

  • Cast iron blade wheels

  • Replaceable blade brush

  • Pre-set and replaceable carbide guides

  • Cast iron guide arm with linear rail (adjustable free side)

  • 43″ infeed and 19 1/4″ outfeed table

  • Door security locks

  • Cooling system with flushing hose

  • Integrated cutting line laser

  • Work area lighting

  • Adjustable vice pressure

  • Blade break switch

  • Heavy duty steel base

  • Easily accessible electrical panel

  • Readable angle scale with locking mechanism

Technical sheet

Possible configurations

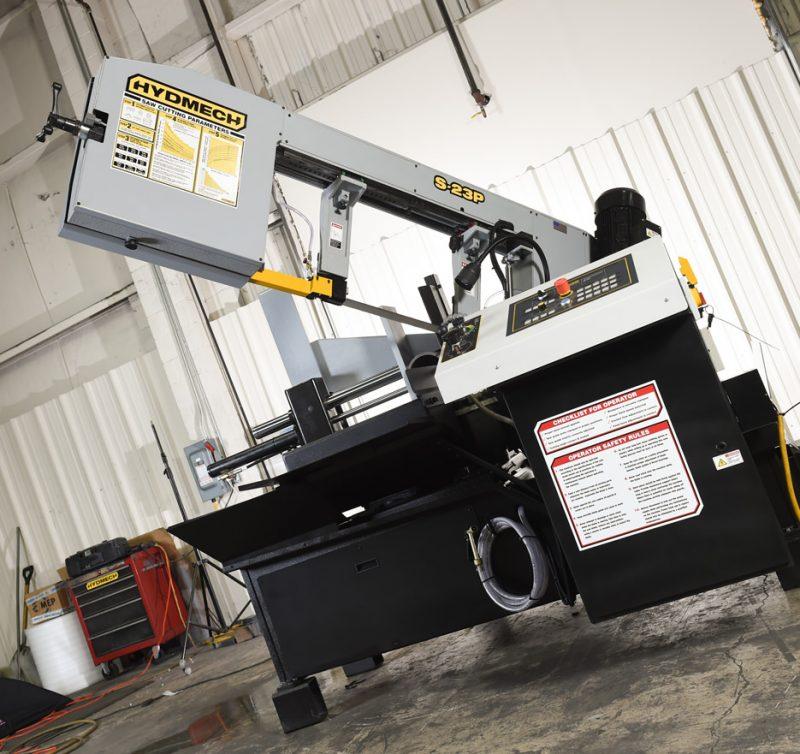

Solid cast iron construction

The cast iron structure and wheels reduce vibrations during cutting, which extends blade and component lifeLarge wheels minimize blade fatigue, ensuring better long-term performance.

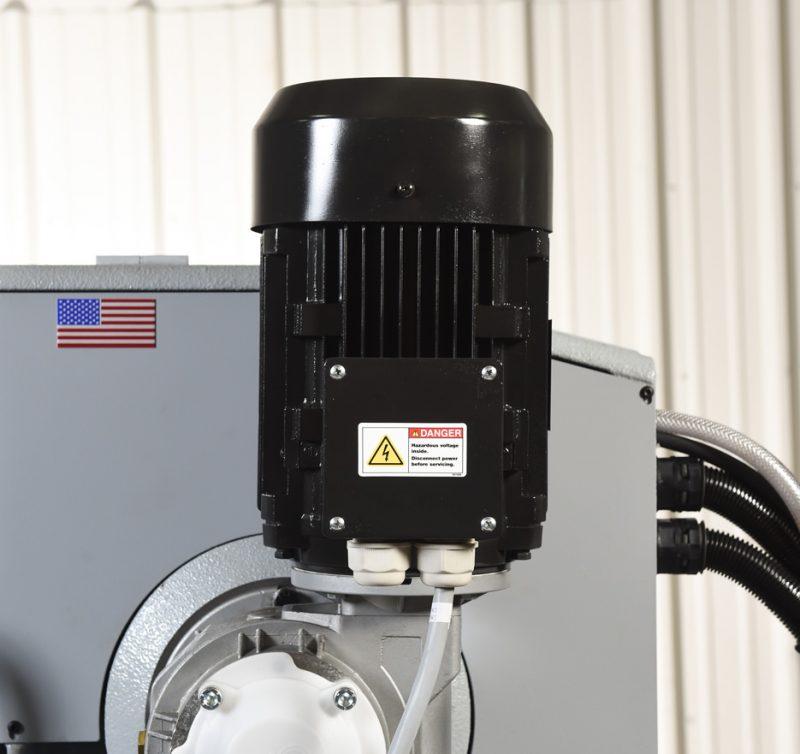

8.8 HP blade drive

Direct drive motor of 8.8 HP controlled by VFD, offering a exceptional cutting power with a blade speed variable and stableResult: a consistent cut, less wear and longer blade life.

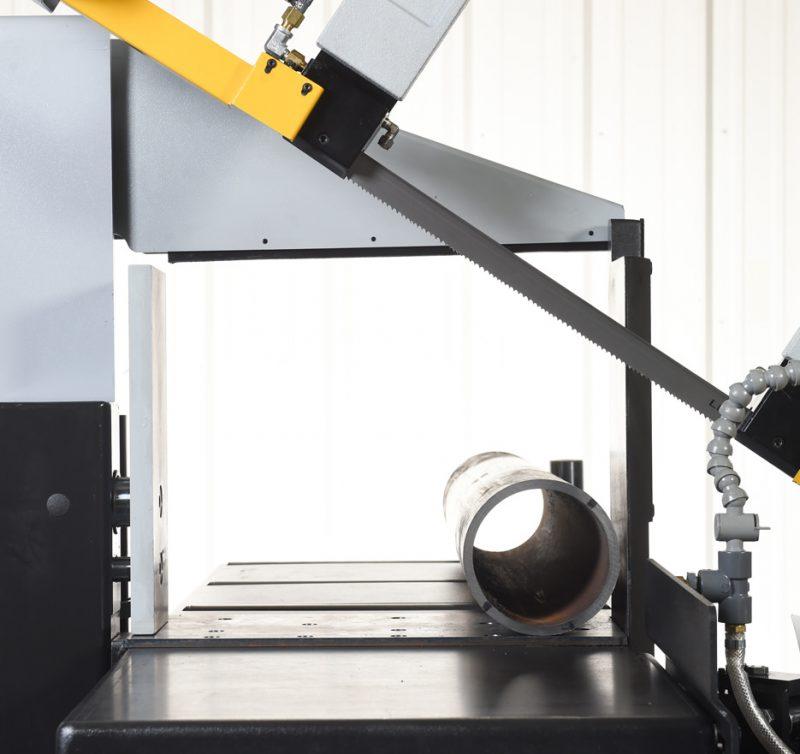

Full-capacity, full-stroke hydraulic vices

Hydraulic vices at complete opening and closing facilitate the preparation of parts and allow a uniform tightening, even when cutting packages or various profiles.

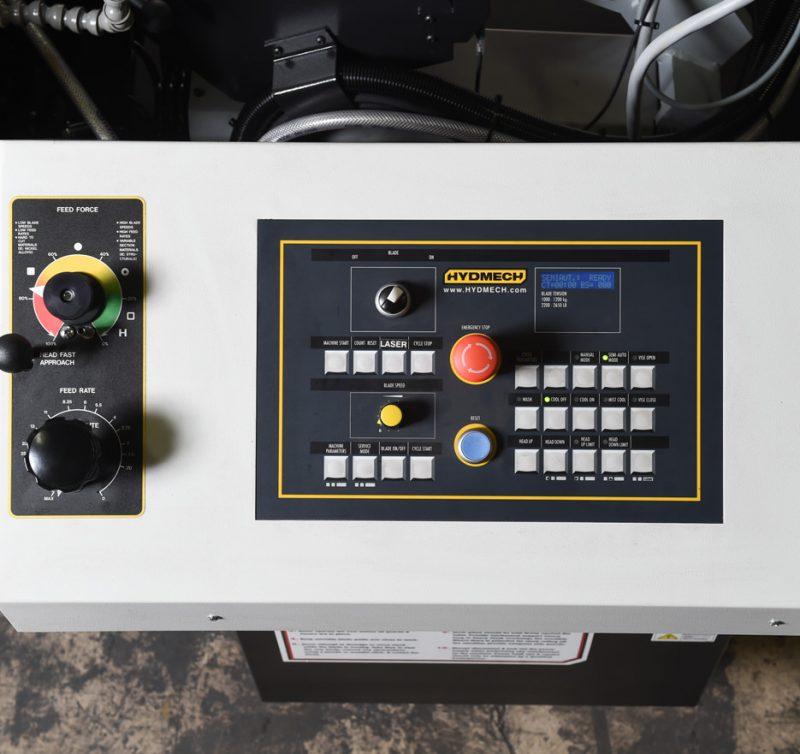

Double hydraulic descent

Dual hydraulic descent system allowing control both flow rate and downforce. The speed adjusts automatically according to the material section, ensuring more efficient cuts and increased tool life.
