Semi-automatic bandsaw – Model 550 BSA VAR-E

Carif

Inquiry Request

YOUR CUTTING PARTNER FOR LARGE-SCALE PROJECTS

There 550 BSA VAR-E Carif is a high-capacity semi-automatic bandsaw, designed for demanding cutting jobs in industrial environments. Its robust steel structure, combined with a powerful speed variator and a patented hydraulic system for controlling the cutting feed and pressure, guarantees a consistent precision and lasting reliability.

Designed for comfortable and efficient use, it is equipped with a integrated display allowing you to control all key parameters: blade speed, cutting height, blade tension and piece counter. It is ideal for straight and miter cutting thanks to its rotation range from -45° to +60°, with digital angle display.

chevron-left
chevron-right

YOUR CUTTING PARTNER FOR LARGE-SCALE PROJECTS

There 550 BSA VAR-E Carif is a high-capacity semi-automatic bandsaw, designed for demanding cutting jobs in industrial environments. Its robust steel structure, combined with a powerful speed variator and a patented hydraulic system for controlling the cutting feed and pressure, guarantees a consistent precision and lasting reliability.

Designed for comfortable and efficient use, it is equipped with a integrated display allowing you to control all key parameters: blade speed, cutting height, blade tension and piece counter. It is ideal for straight and miter cutting thanks to its rotation range from -45° to +60°, with digital angle display.

Main features

  • Robust base structure made of powder-coated steel

  • Head welded from a single block of structural sheet metal

  • Patented hydraulic system for adjusting cutting feed and pressure

  • Industrial gearbox with variable speed drive (4 kW, range 15 to 100 m/min)

  • Integrated digital display for miter cuts from -45° to +60°

  • Frame rotation on tapered bearings, independent of the support plane

  • Swivel console with integrated display: speed control, cutting height, blade tension, parts counter

  • Potentiometer to memorize the cutting height (automatic blade return)

  • Load cell blade tension sensor

  • Motorized brush for cleaning the blade

  • Frame cover with hinges for a easy blade change

  • Eccentric roller for cutting small pieces

  • Wide shots for a stable support of the workpiece to be cut

  • Complete lubrication system: 50 L tank with three-phase electric pump (0.1 kW)

  • Blade rotation sensor

  • Measuring device L=500 mm with height adjustment

  • Large chip tray for quick cleanup

  • Supplied with: M42 bi-metal blade (3820x34x1.1 mm), service key, instruction manual and spare parts list

Technical sheet

Possible configurations

Patented Hydraulic System

The patented hydraulic system ensures a uniform and controlled descent of the bow, with intelligent self-regulation according to the material, its section and thickness. This technology maintains a constant straight cut while reducing premature wear of the blade. Even at the end of its life, the blade is protected thanks to a slow descent without overloading.

Swivel Arm Console with Integrated Panel

The 550's pivoting console features an integrated control panel that allows you to adjust blade speed, cutting height, blade tension, and display the number of pieces cut. Complete, centralized control for optimal productivity.

Angular Cuts up to -45º / +60º

The bow pivots in both directions on tapered roller bearings, independent of the support plane. The cutting angle is displayed digitally on the integrated display, ensuring maximum precision when making adjustments.

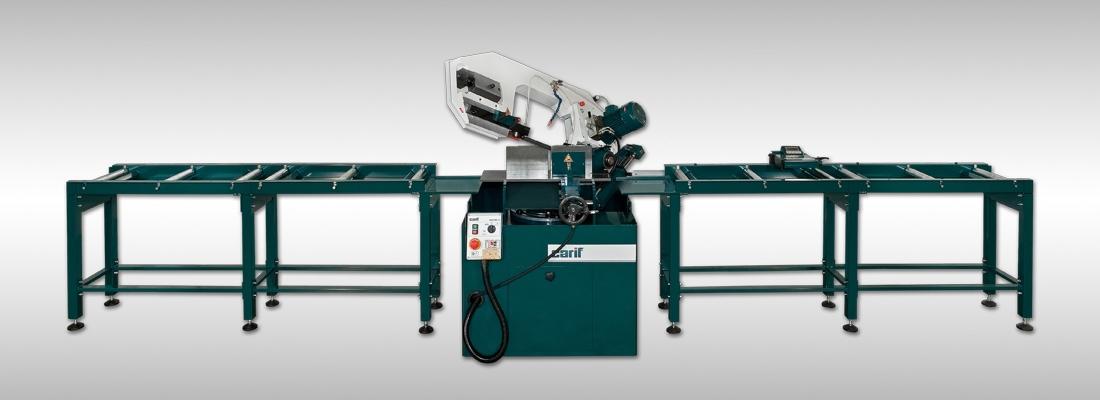

Integrated roller units

The 550 BSA VAR-E's roller units provide stable and smooth bar support during cutting. Their wide surface area facilitates material handling, reduces friction, and improves feeding accuracy. Ideal for production environments, they maintain alignment and ensure a straight cut, even with long or heavy workpieces.
