Plate Roller – HR3WS Series

Roccia Machinery

Inquiry Request

FOR BIG JOBS

The Roccia 3-Roller Series Plate Roller, model HR3WS, embodies the union of proven German engineering and renowned Italian design. Designed to satisfy the most demanding needs, this model stands out for its unique design.

With its two side rollers moving horizontally and its upper roller moving up and down, this roller with variable geometry adapts to a wide variety of tasks. While it may not be the fastest, its versatility makes it a compelling choice. The adjustment range of the side rollers combines performance and flexibility, even allowing you to use it as a press to obtain very short flat edges.

Available in several versions, ranging from 1 to 8 meters in plate length and with a thickness of 1 mm to 300 mm, you will certainly find the model that will meet your production needs.

chevron-left
chevron-right

FOR BIG JOBS

The Roccia 3-Roller Series Plate Roller, model HR3WS, embodies the union of proven German engineering and renowned Italian design. Designed to satisfy the most demanding needs, this model stands out for its unique design.

With its two side rollers moving horizontally and its upper roller moving up and down, this roller with variable geometry adapts to a wide variety of tasks. While it may not be the fastest, its versatility makes it a compelling choice. The adjustment range of the side rollers combines performance and flexibility, even allowing you to use it as a press to obtain very short flat edges.

Available in several versions, ranging from 1 to 8 meters in plate length and with a thickness of 1 mm to 300 mm, you will certainly find the model that will meet your production needs.

Main features

  • Variable geometry design, the top roller moves vertically and the side rollers move horizontally
  • Fully electronic hydraulic machine
  • Three rollers driven by planetary gearboxes + hydraulic motor
  • Forged and quenched heat treated C45 alloy rollers
  • Top and side rollers with hydraulic positioning movements by hydraulic cylinders
  • N°2 preset cylinder rotation speeds selectable from the control panel
  • Electronic-hydraulic control of the balancing system
  • Electronic-hydraulic tilt of upper and side cylinders directly from the control panel
  • All rollers rotate on top brand radial bearings with high dynamic load
  • All movements are directly controlled by the mobile control panel.
  • Low voltage on mobile control panel (24VAC)
  • Hydraulic unit composed of: hydraulic oil tank, motor pump groups, solenoid valves, maximum pressure bypass valve to guarantee protection against overloads.
  • Best quality hydraulic and electrical components
  • Hydraulic oil cooling system by air or water
  • Opening the end of the hydraulic chute to allow extraction of the tube
  • Permanent lubrication by bronze graphite slides
  • Machine complies with CE safety standards
Technical sheet

Available models

• HR3W2006 • HR3W2525 • HR3W3061
• HR3W2008 • HR3W2530 • HR3W3062
• HR3W2010 • HR3W2535 • HR3W3063
• HR3W2013 • HR3W2540 • HR3W3064
• HR3W2018 • HR3W2550 • HR3W3065
• HR3W2020 • HR3W3006 • HR3W3066
• HR3W2025 • HR3W3008 • HR3W3067
• HR3W2030 • HR3W3010 • HR3W3068
• HR3W2040 • HR3W3013 • HR3W3069
• HR3W2050 • HR3W3016 • HR3W3070
• HR3W2080 • HR3W3020 • HR3W3071
• HR3W2506 • HR3W3025 • HR3W3072
• HR3W2508 • HR3W3032 • HR3W3073
• HR3W2510 • HR3W3040 • HR3W3074
• HR3W2513 • HR3W3045 • HR3W3075
• HR3W2516 • HR3W3050
• HR3W2522 • HR3W3060
Get info

Possible configurations

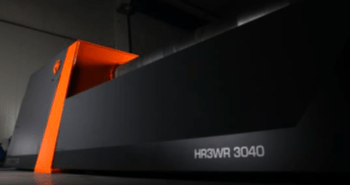

Unmatched Reliability in Every Detail

Each piece is meticulously crafted to ensure optimum quality, while our leading business partners are easily accessible in the market. Our machines are equipped with electronic temperature and oil level indicators, as well as filter clogging sensors, ensuring smooth operation. Designed to withstand higher loads of more than 20 % compared to normal work cycles, our machines are equipped with hydraulic and electronic protections to prevent overloads and ensure maximum reliability.

Manufacturing process

All parts are machined on CNC machining centers for a perfect fit. The couplings are mounted on high load bearings with self-lubricating bushings. The hydraulic system incorporates premium components and is automatically controlled to maintain optimal precision at every oil temperature. Superior electronics ensure precise positioning of the rollers and maintain their parallelism with absolute precision.
